CHIMERA Quad-Tube Night Vision | Gen2+ White Phosphor
CHIMERA Quad-Tube Night Vision | Gen2+ White Phosphor
Image intensifier / four tubes / white phosphor
Approximately 1200 FOM · autogating · individual manual irises · 4 × CR123A
Condition：New
Included：CHIMERA quad-tube night vision device / 4 × CR123A batteries / Mount / Storage case
Couldn't load pickup availability
Warranty and repairs · Returns, exchanges and costs
Low stock: 2 left

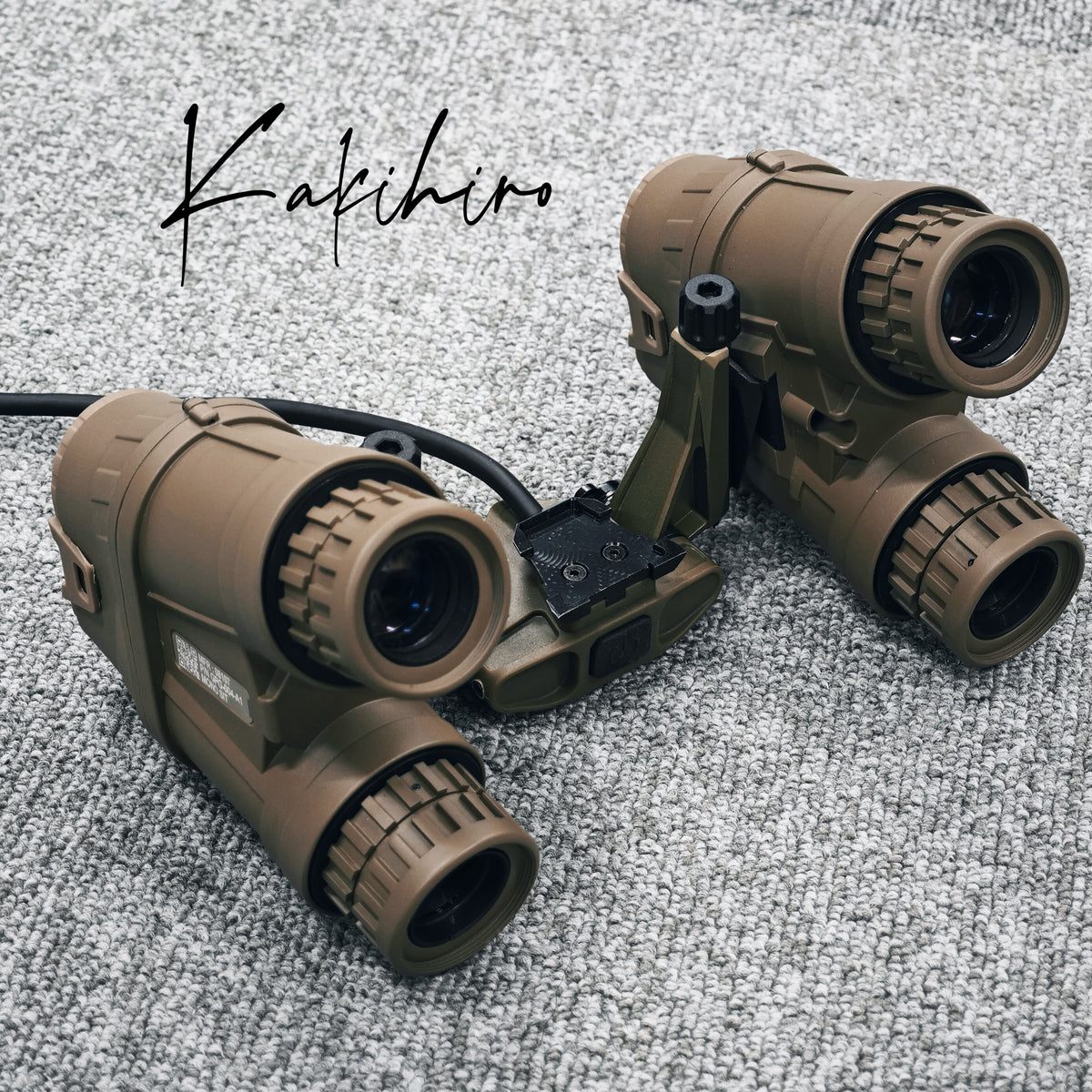

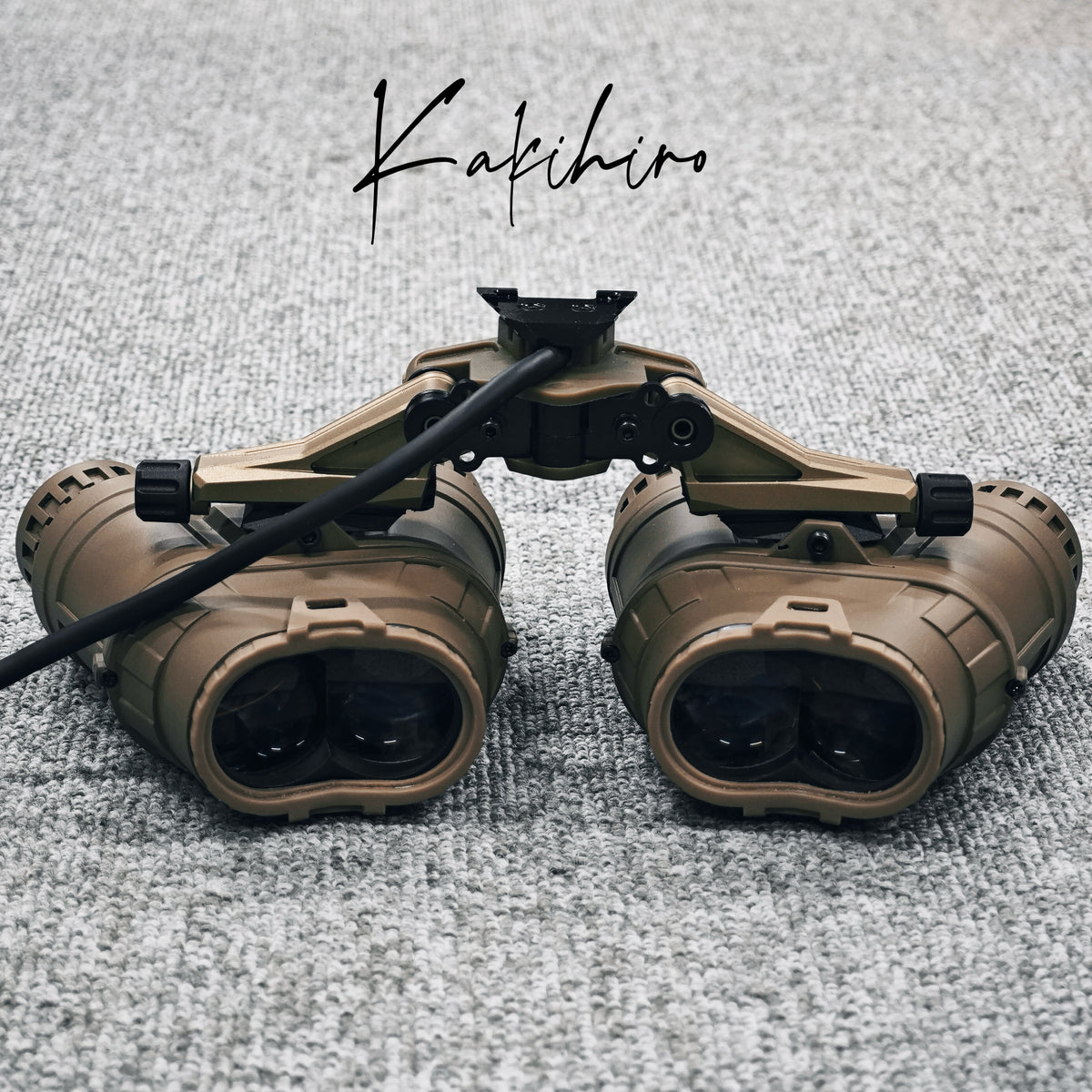

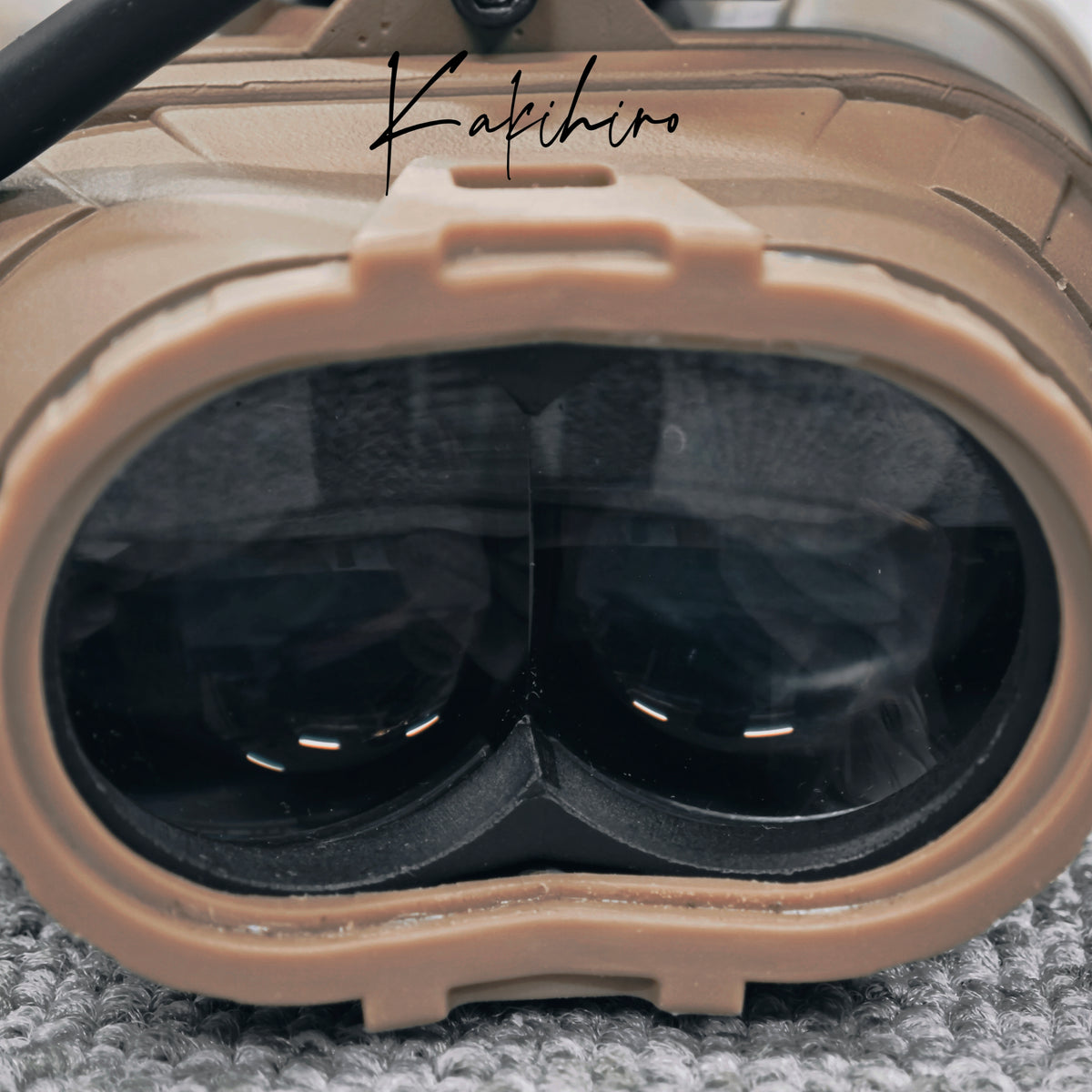

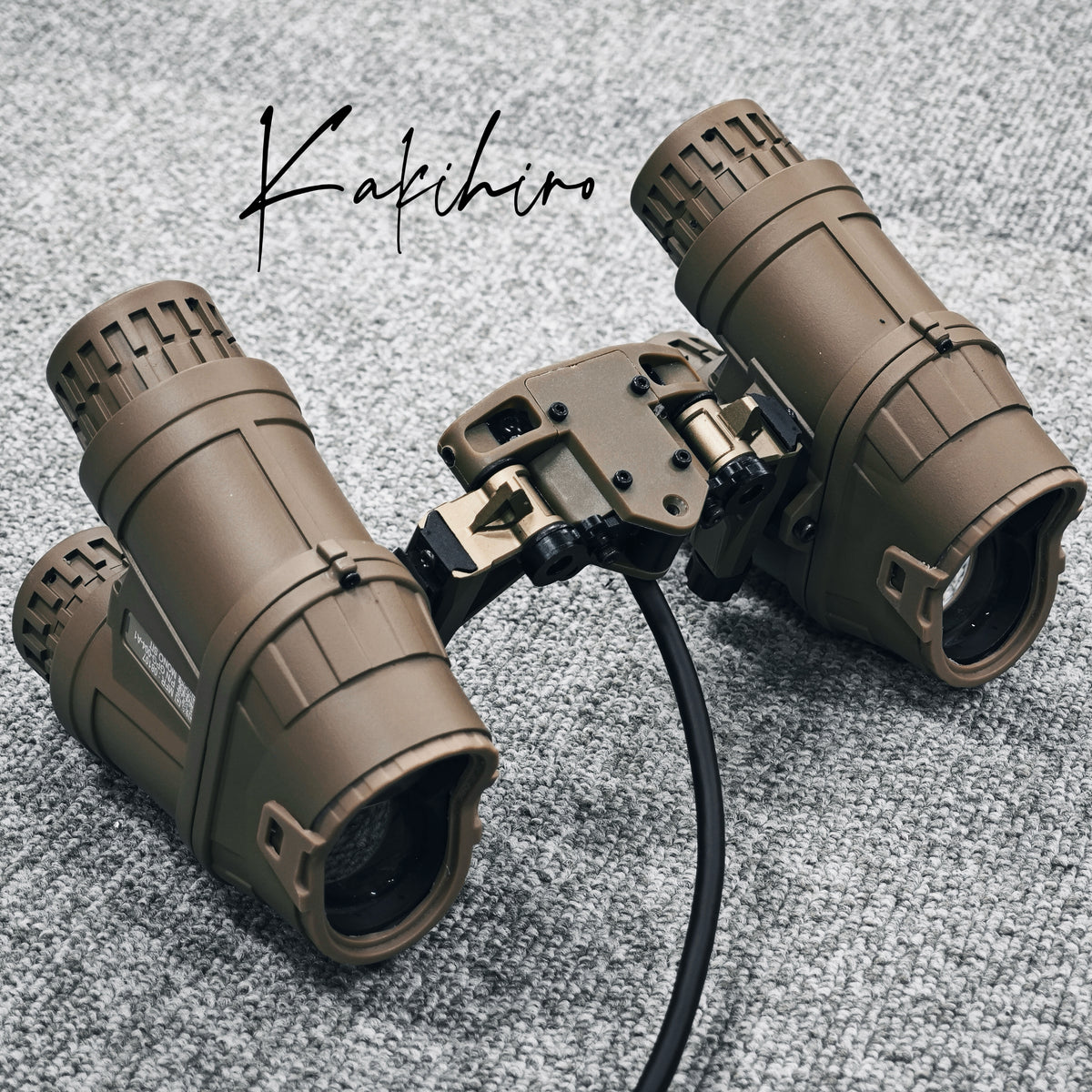

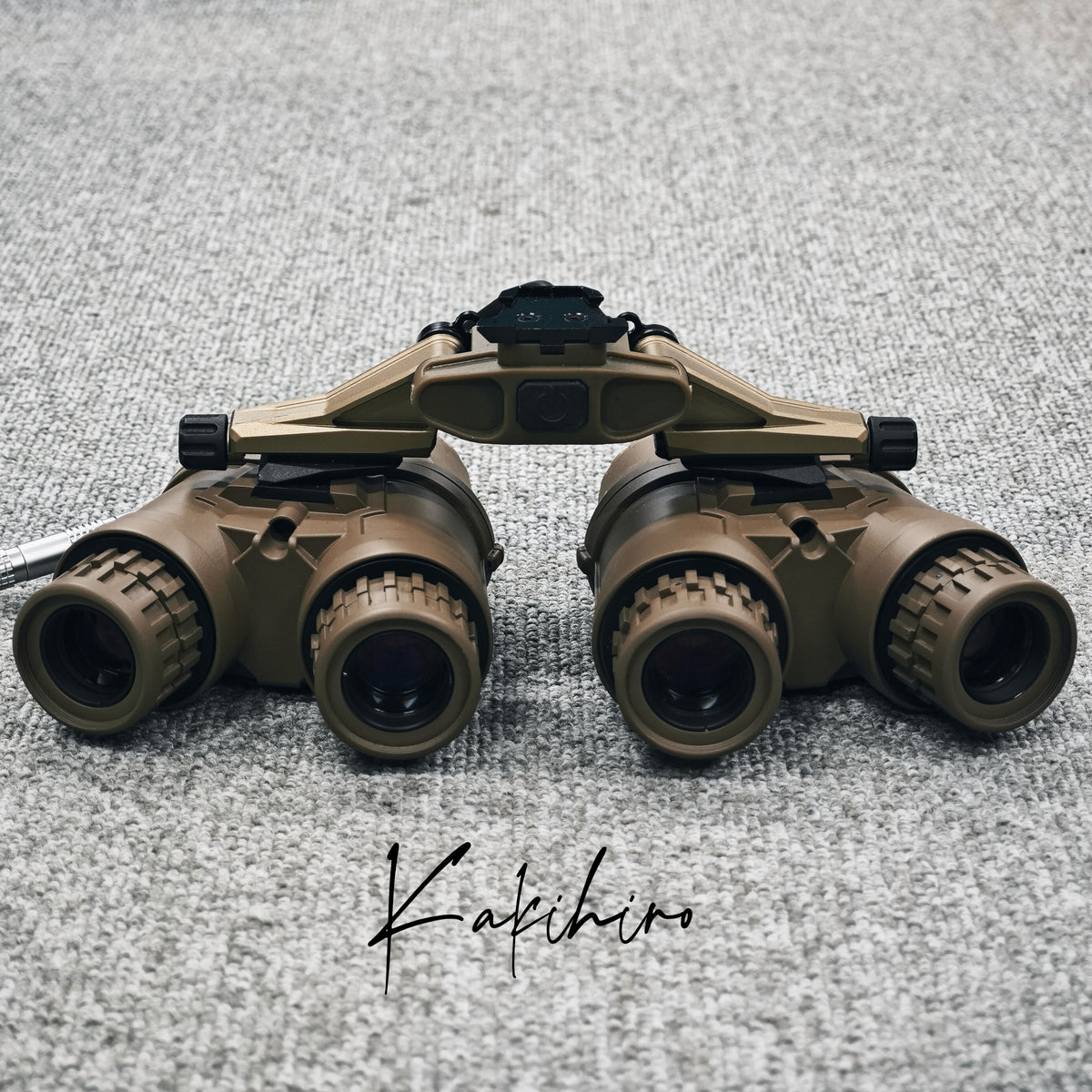

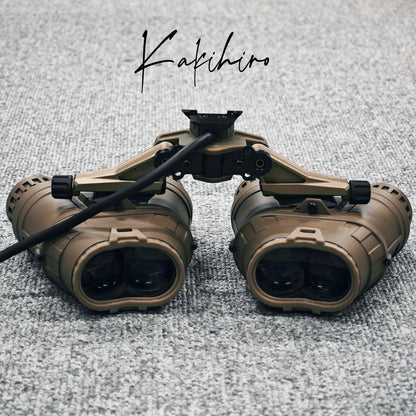

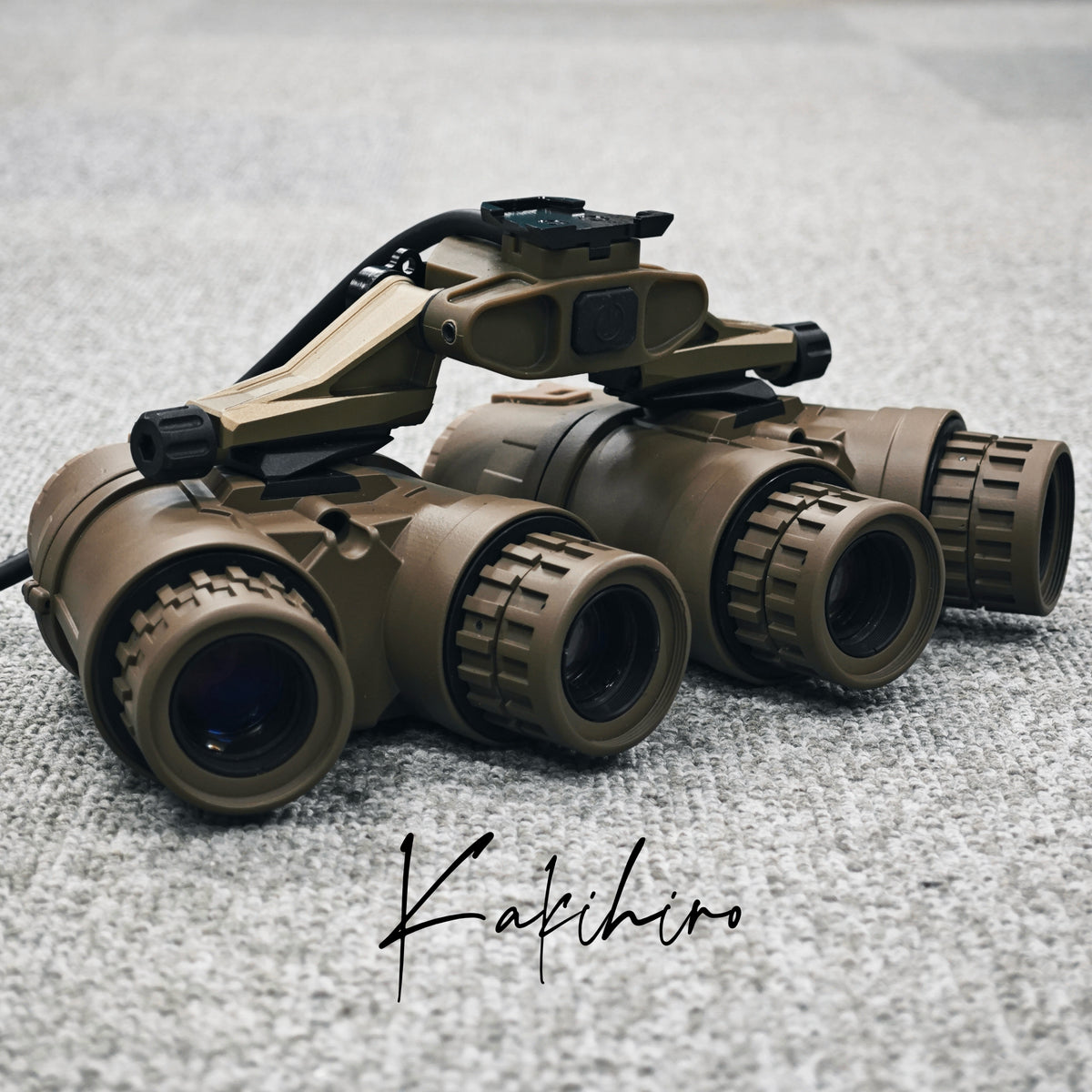

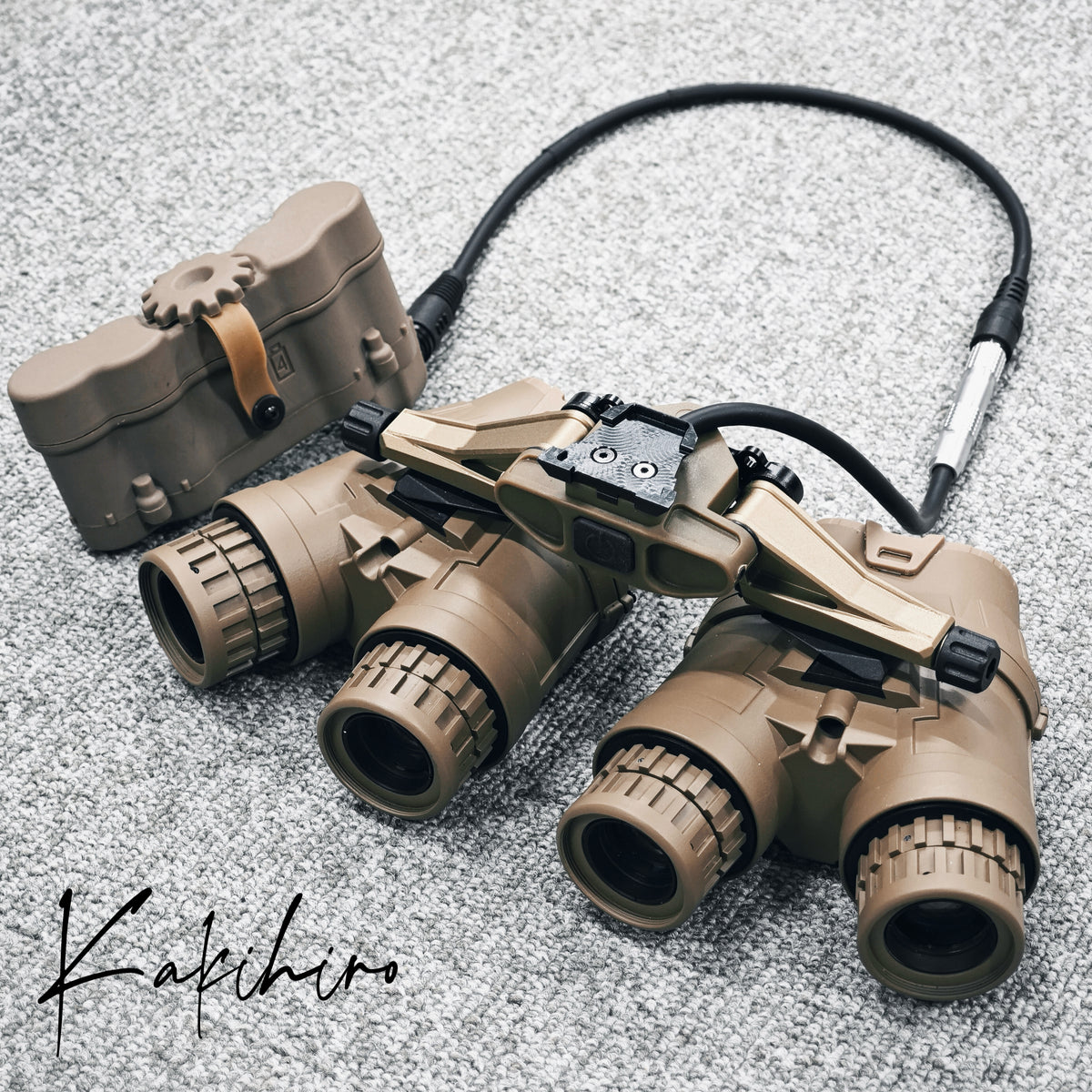

CHIMERA is a four-tube image-intensifier night vision device with Gen2+ white phosphor tubes, approximately 1200 FOM, and autogating. A built-in manual iris in each objective lens lets you adjust incoming light to suit the lighting and viewing distance. The device uses four CR123A batteries.

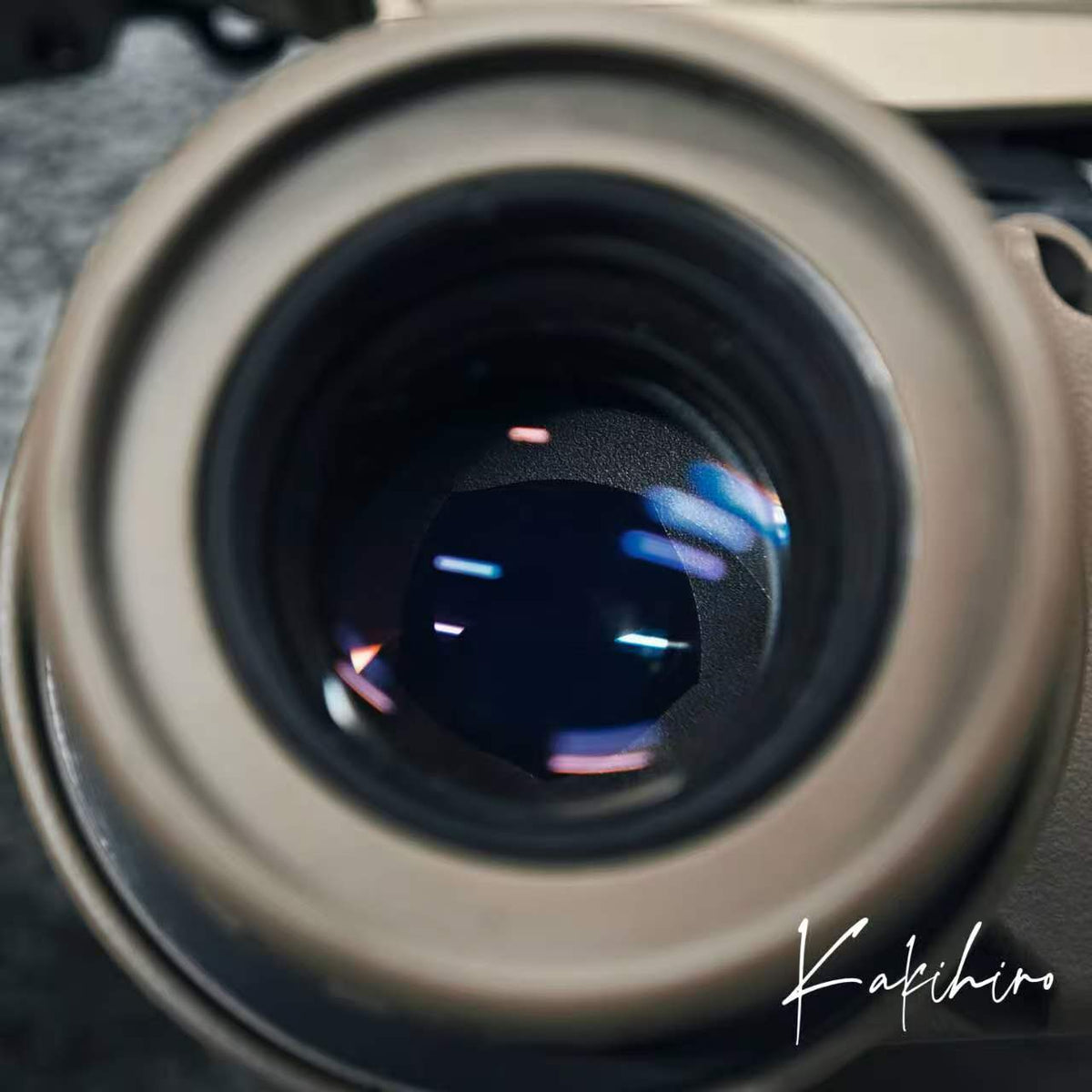

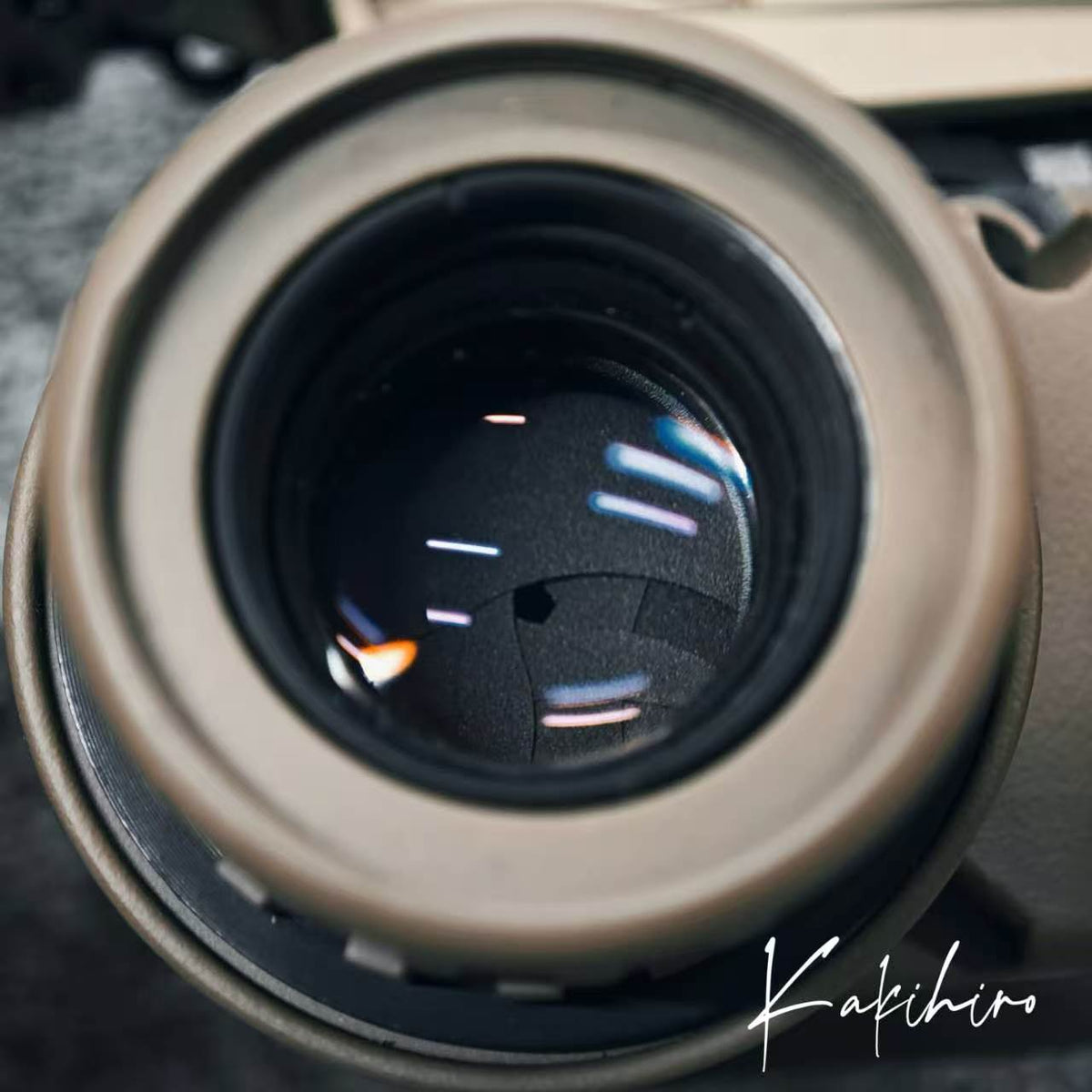

A built-in iris for each lens
- Adjust the view: independently adjust each iris to control the light reaching the tube and the resulting image brightness.
- Adjust depth of field: a smaller aperture can increase the range of distances that appear in focus. It also reduces incoming light, so adjust the opening to suit visibility in darker conditions.
- Help reduce bright-light exposure: limiting incoming light helps reduce the light load on the tubes in bright environments, including daytime handling.
The iris controls light optically. It does not directly adjust the electronic gain of the image intensifier tube.
White phosphor, approximately 1200 FOM, and autogating

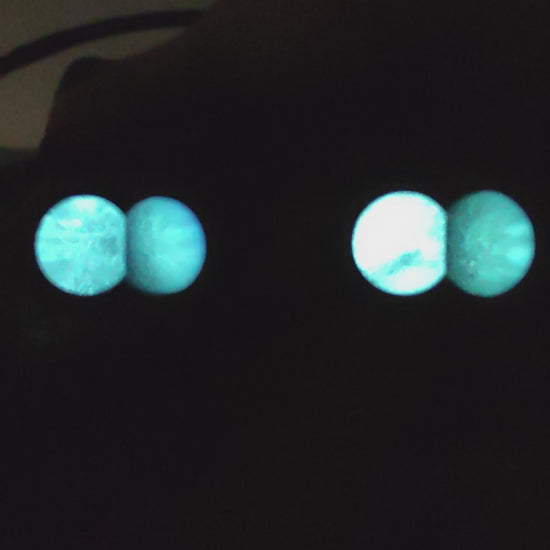

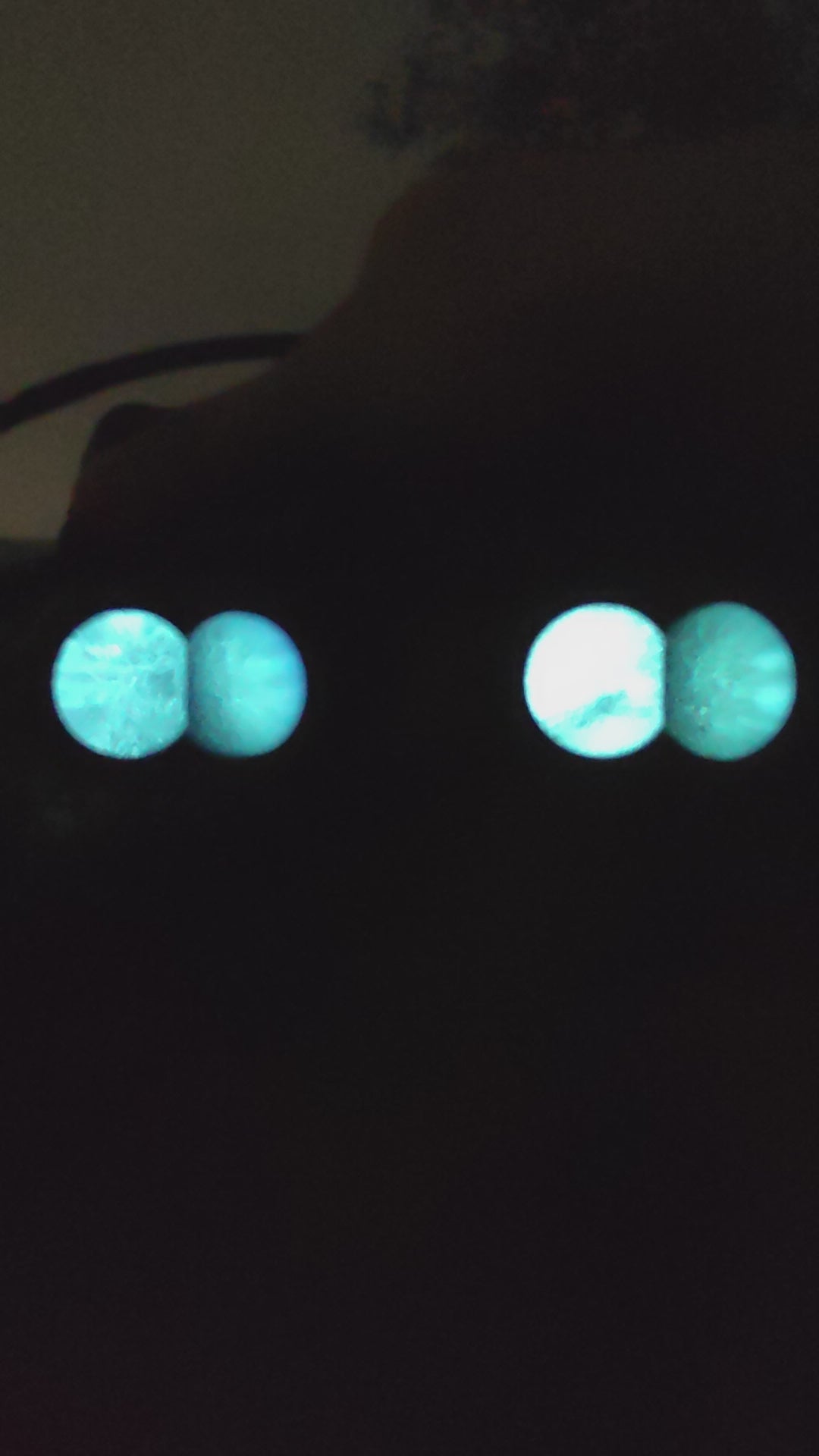

The tubes have equivalent specifications to our other approximately 1200 FOM white phosphor autogated models. The view is displayed in white-to-grey tones. Autogating adjusts tube operation as ambient brightness changes.
FOM is an approximate reference value. Image quality, dark spots, and shading vary between individual tubes and with ambient lighting.
Specifications
| Type and configuration | Image intensifier / four-tube |
|---|---|
| Tube generation | Gen2+ |
| Phosphor | White phosphor |
| FOM | Approximately 1200 |
| Autogating | Included |
| Iris | Built into each objective lens / independently adjustable by hand |
| Power | 4 × CR123A batteries |
Included items
- CHIMERA quad-tube night vision device
- 4 × CR123A batteries
- Mount
- Storage case
Before use
The iris and autogating do not guarantee protection against every bright-light condition. Do not point the device directly at the sun or intense light sources. Follow the device instructions for daytime handling, and switch it off and cover the lenses for storage.
Confirm compatibility before using batteries other than CR123A. Rechargeable cells of a similar size can have a different voltage.
For mounting compatibility or questions about the view, contact us before ordering.
Choosing and using night vision
Choose a viewing system to suit your use and budget. Similar-looking models can require different batteries and mounting parts; check the specifications and included items before ordering.
